DSPIAE ZPB Straight Edge Broach and DSPIAE GS Step Scraper are precision tungsten-steel cutting bits designed for clean, controlled surface processing—ideal for panel line work, seam refinement, and mechanical detailing. The ZPB series focuses on straight-edge broaching/engraving with multiple blade widths, while the GS Step Scraper uses dual-size “step” blades to help turn plain seams into crisp, panel-like mechanical lines.
Choose your item
- ZPB Straight Edge Broach bit (bit only) – select the blade width you need for fine engraving and line work.
- GS Step Scraper bit (bit only) – dual-size step scraper for seam-to-panel conversion and step scraping.
- AT-EH PRO Cutting Bits Holder (handle) – aluminium alloy holder for 3.175mm shank bits (sold separately).

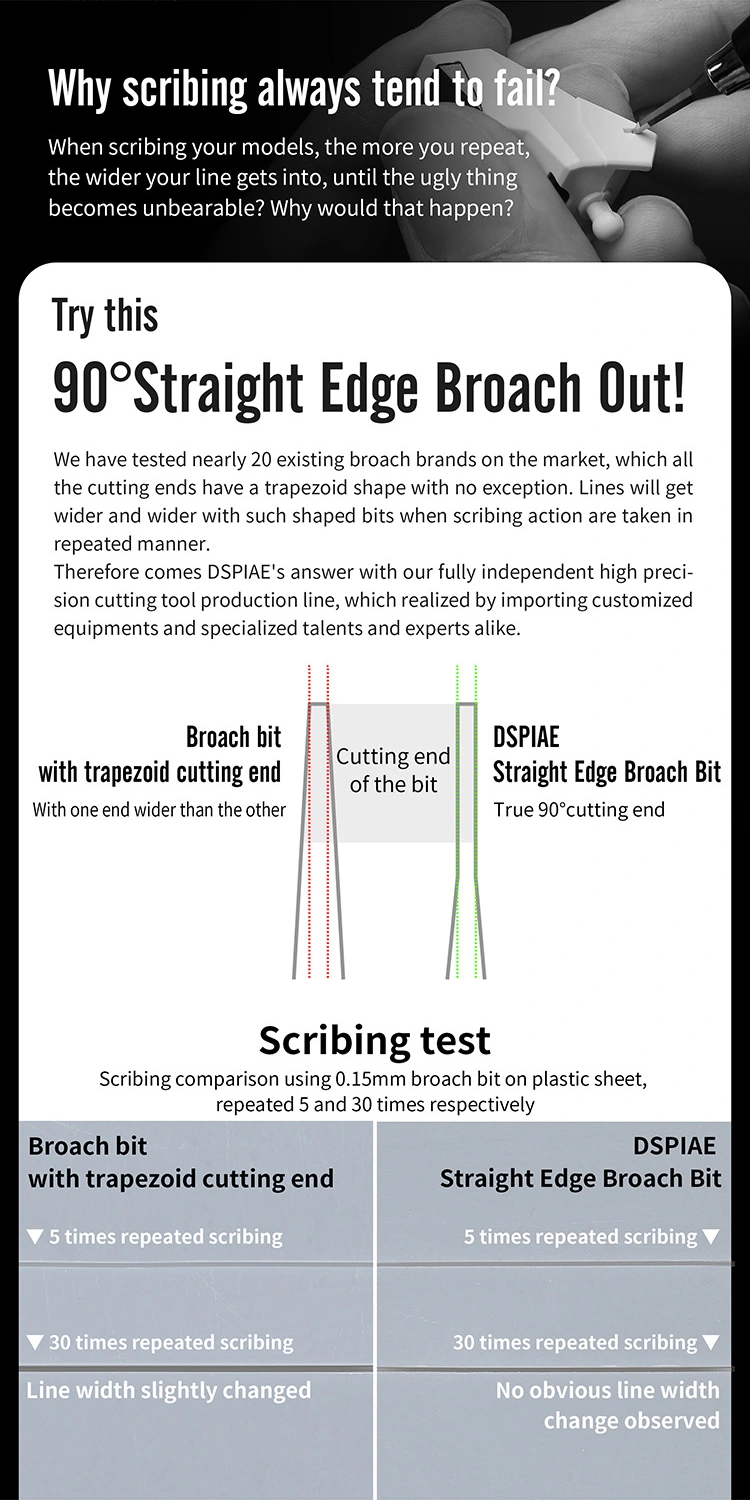

ZPB Straight Edge Broach – best for
- Refining panel lines and keeping groove width consistent
- Opening / widening existing lines with better control than freehand blade work
- Cutting clean straight micro-grooves for DIY surface detailing
GS Step Scraper – best for
- Step scraping to create crisp “mechanical seams” and layered panel separation
- Seam conversion: turning combined seams into panel-like lines with a stepped groove
- Fast size switching: each blade has two sizes on one bit

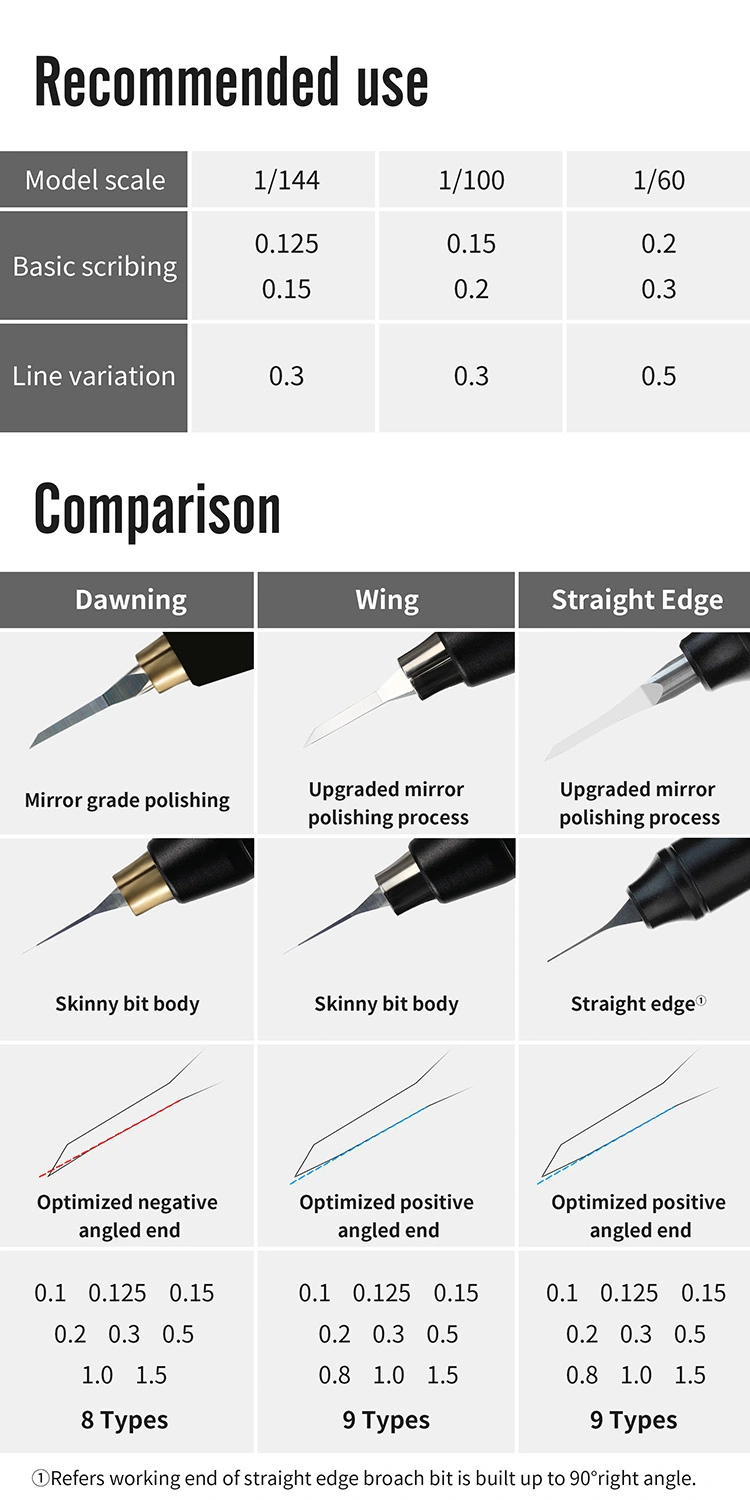

Bit size options
- ZPB Straight Edge Broach (single width):
- ZPB-01 – 0.1mm
- ZPB-0125 – 0.125mm
- ZPB-015 – 0.15mm
- ZPB-02 – 0.2mm
- ZPB-03 – 0.3mm
- ZPB-05 – 0.5mm
- ZPB-08 – 0.8mm
- ZPB-10 – 1.0mm
- ZPB-15 – 1.5mm

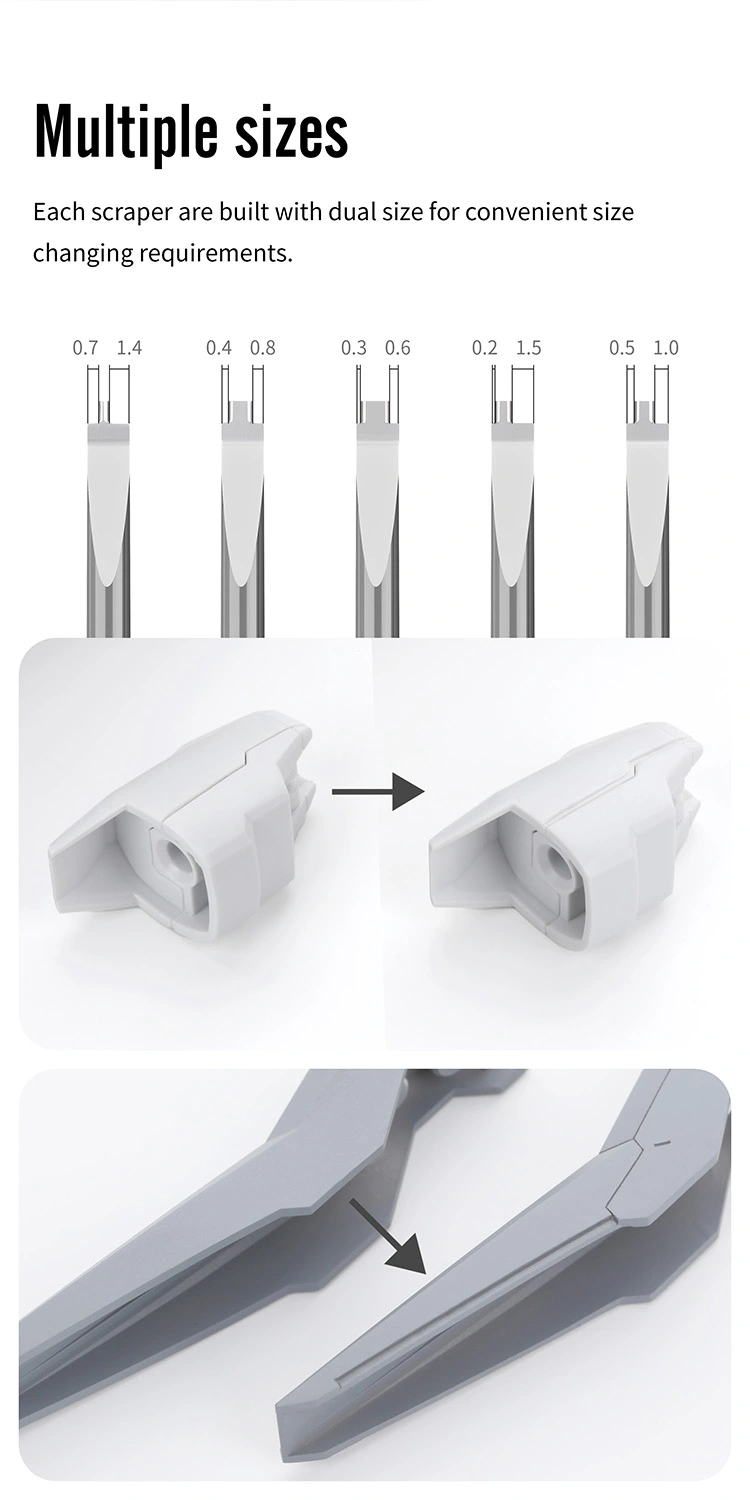

- GS Step Scraper (dual size per bit):
- GS-0215 – 0.2 / 1.5mm
- GS-0306 – 0.3 / 0.6mm
- GS-0408 – 0.4 / 0.8mm
- GS-0510 – 0.5 / 1.0mm
- GS-0714 – 0.7 / 1.4mm
Compatibility
- Shank diameter: 3.175mm
- Bits and handle are typically sold separately unless stated otherwise on the specific product option you select.
- Checkout PT-TH PRO “DAWNING” Bit Holder 2.0
How to use (quick tips)
- Make light passes first, then deepen gradually—this keeps edges cleaner and reduces slipping.
- For step scraping, keep the tool flat and stable, and work slowly along the seam to maintain a consistent step.
- Clean dust from the groove frequently so the cutting edge stays crisp.
Notes
- These are precision cutting tools. Use care during installation and storage.
- For best results, practise on spare plastic first to match the bit size to your preferred panel line style.
