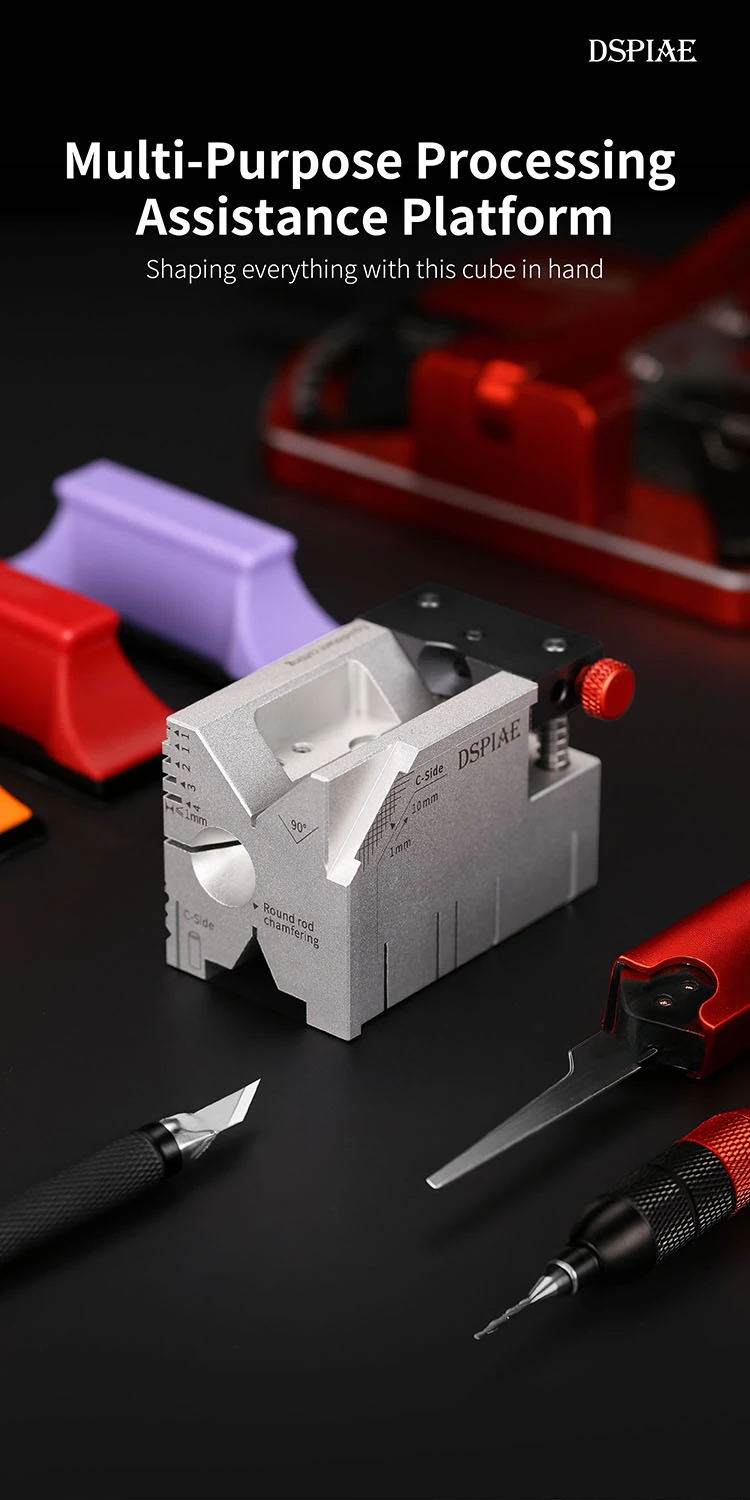

The DSPIAE AT-AP is a compact, precision-made “cube” platform designed to make common modelling jobs more accurate, repeatable, and safe. Built from aluminum alloy, it works as a stable support for drilling, cutting, sanding, and shaping—especially when you need consistent angles, spacing, or alignment.
What it helps you do

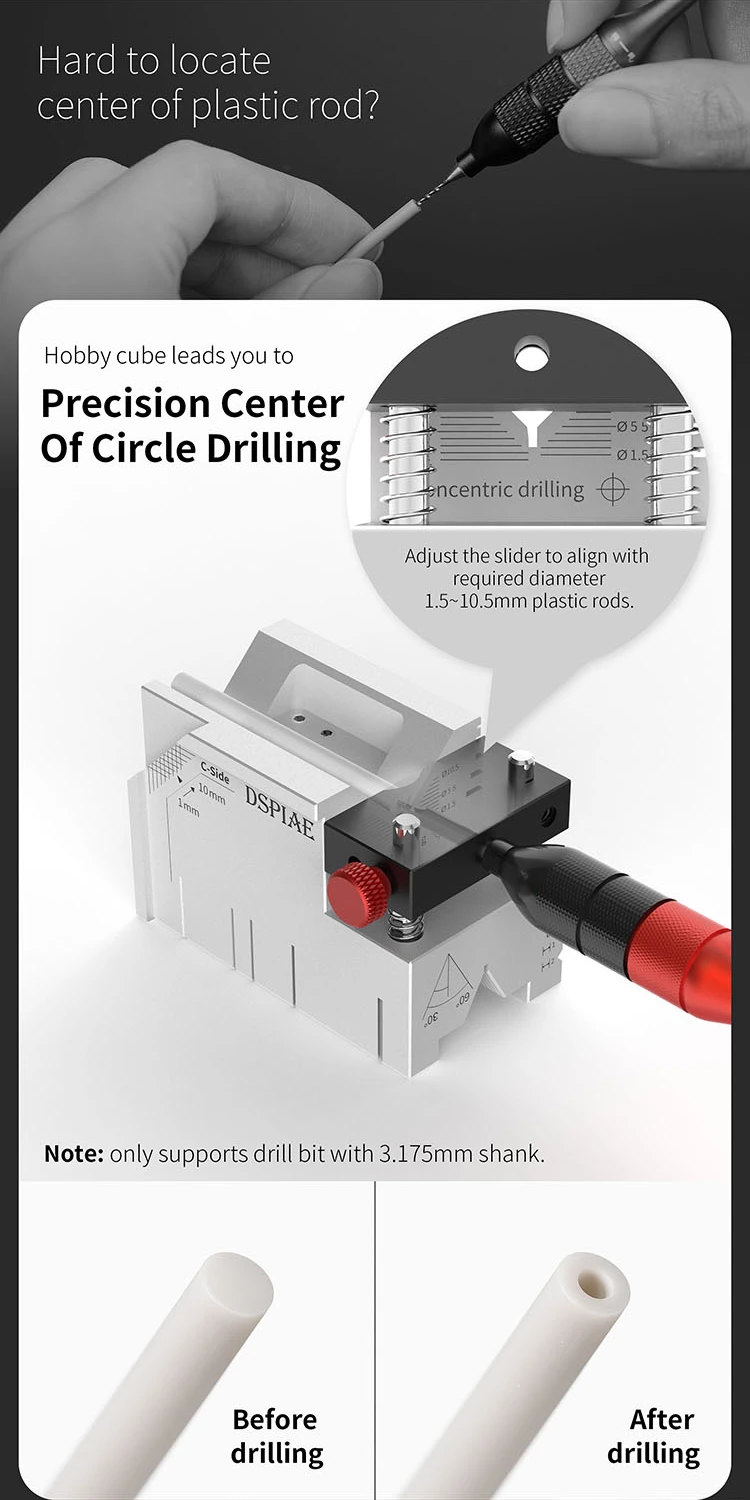

- Concentric (centered) drilling: use the adjustable slider to align drilling on plastic rods (approx. 1.5–10.5mm diameter). Supports drill bits with 3.175mm shank.
- Vertical drilling with controlled spacing: built-in gauge supports spacing reference from 0–34mm (3.175mm shank drill bits).

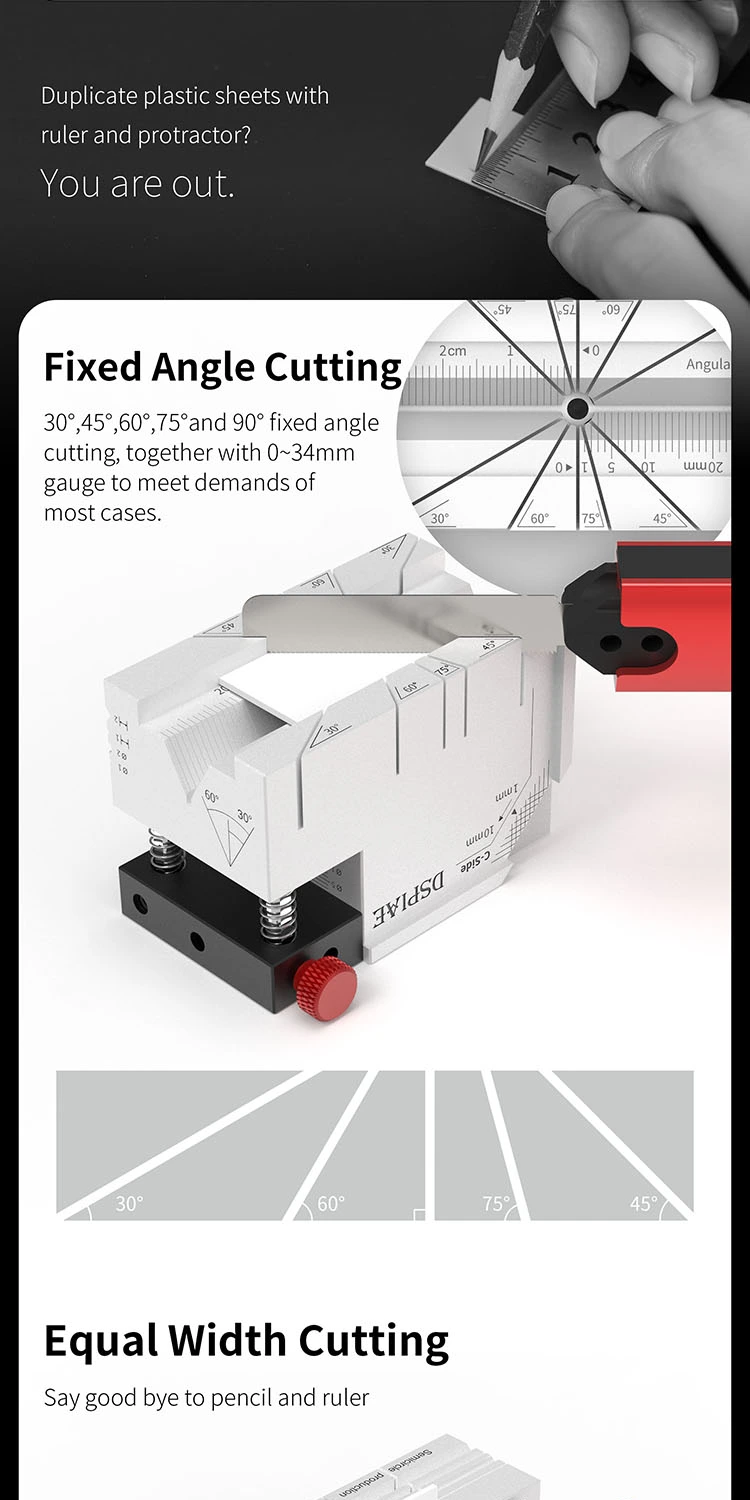

- Fixed-angle cutting: provides common preset angles (30°, 45°, 60°, 75°, 90°) for clean, repeatable cuts.
- Equal-width cutting: helps you cut strips consistently (up to around 44mm maximum cutting length). A broader hobby blade is recommended.

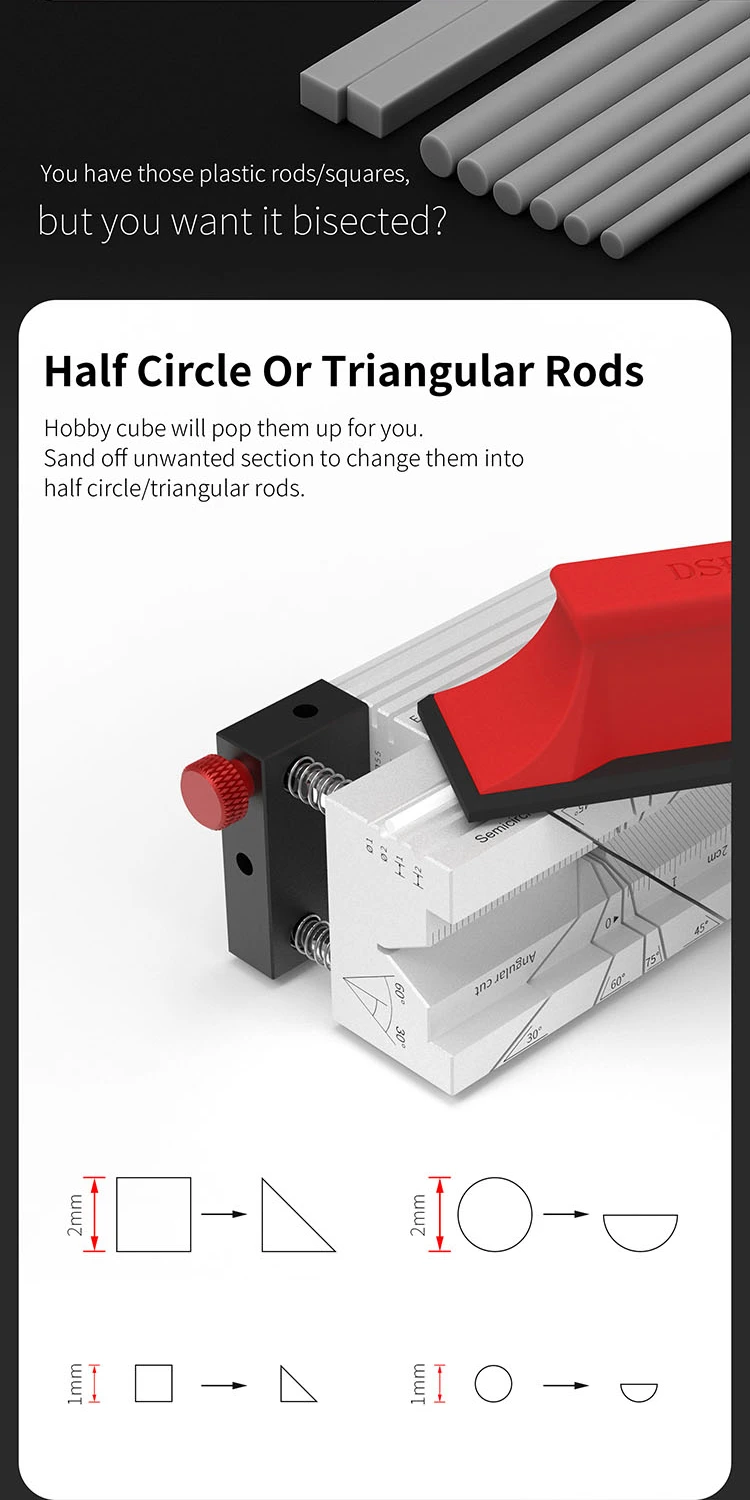

- Rod shaping support: helps hold material to sand into half-round or triangular rod profiles more easily.

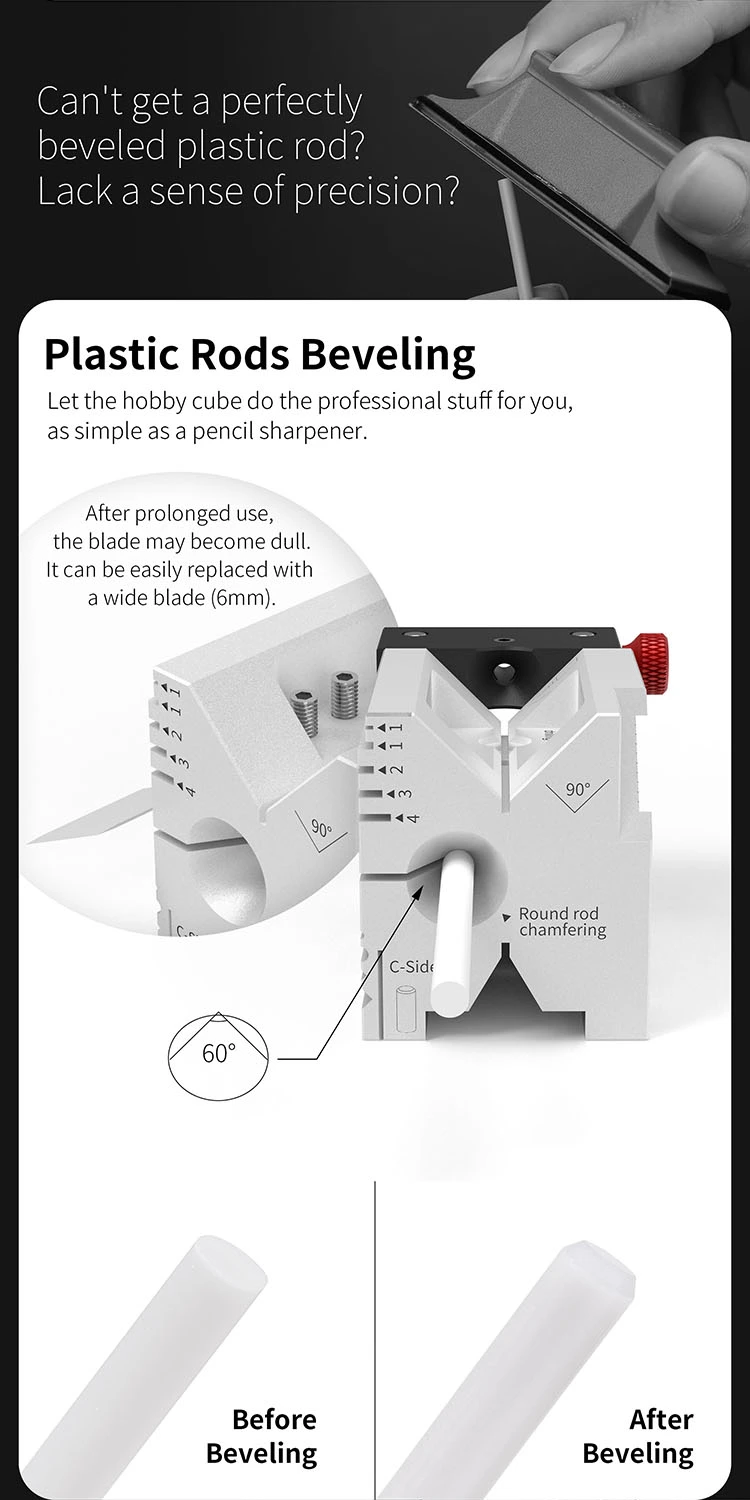

- Plastic sheet chamfering: supports chamfering operations for sheet work (listed as 1–10mm).
Key features

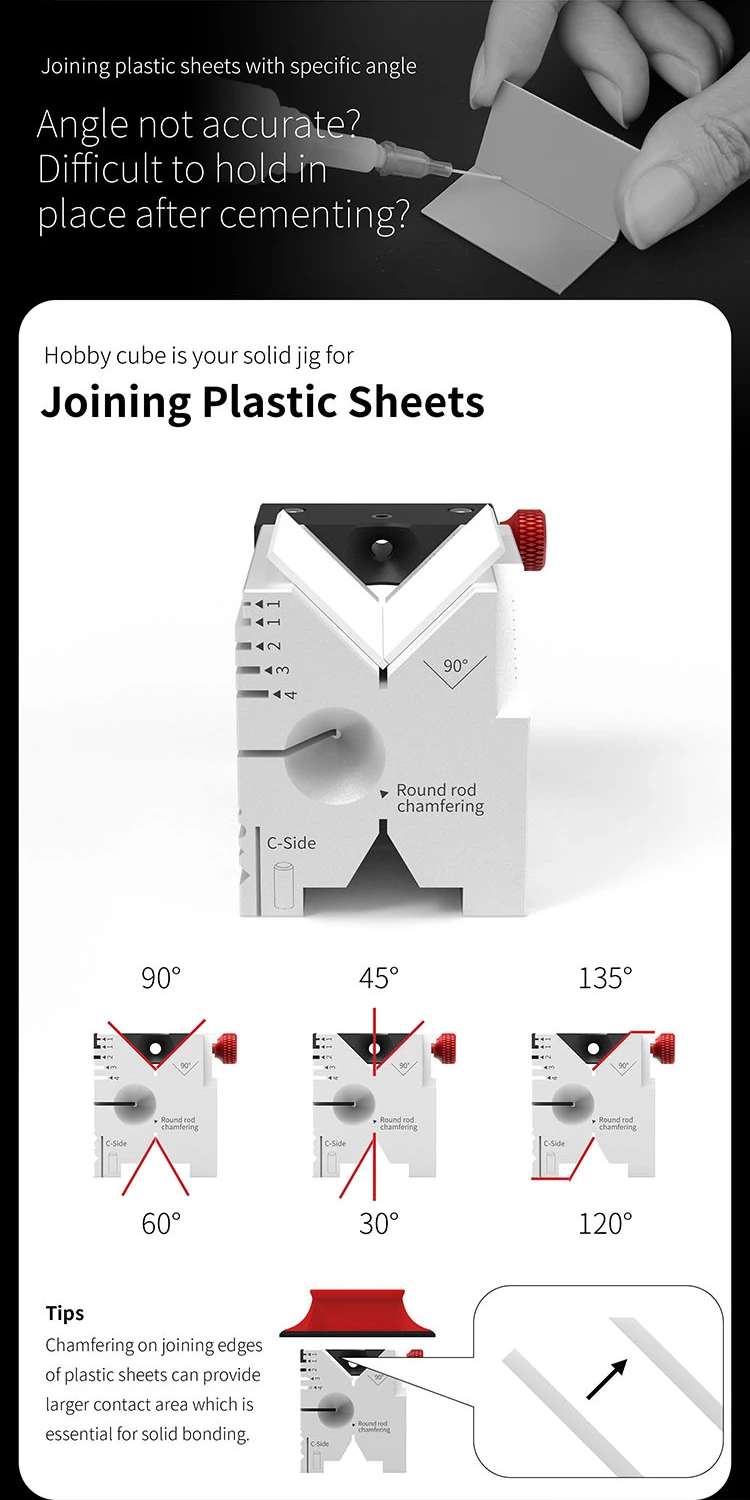

- Stable work platform that helps hold parts during sanding, filing, assembly, and tool work.
- Raised edges help prevent small parts from slipping or rolling away while you work.
- Durable, compact metal body sized for desktop use.
What’s included

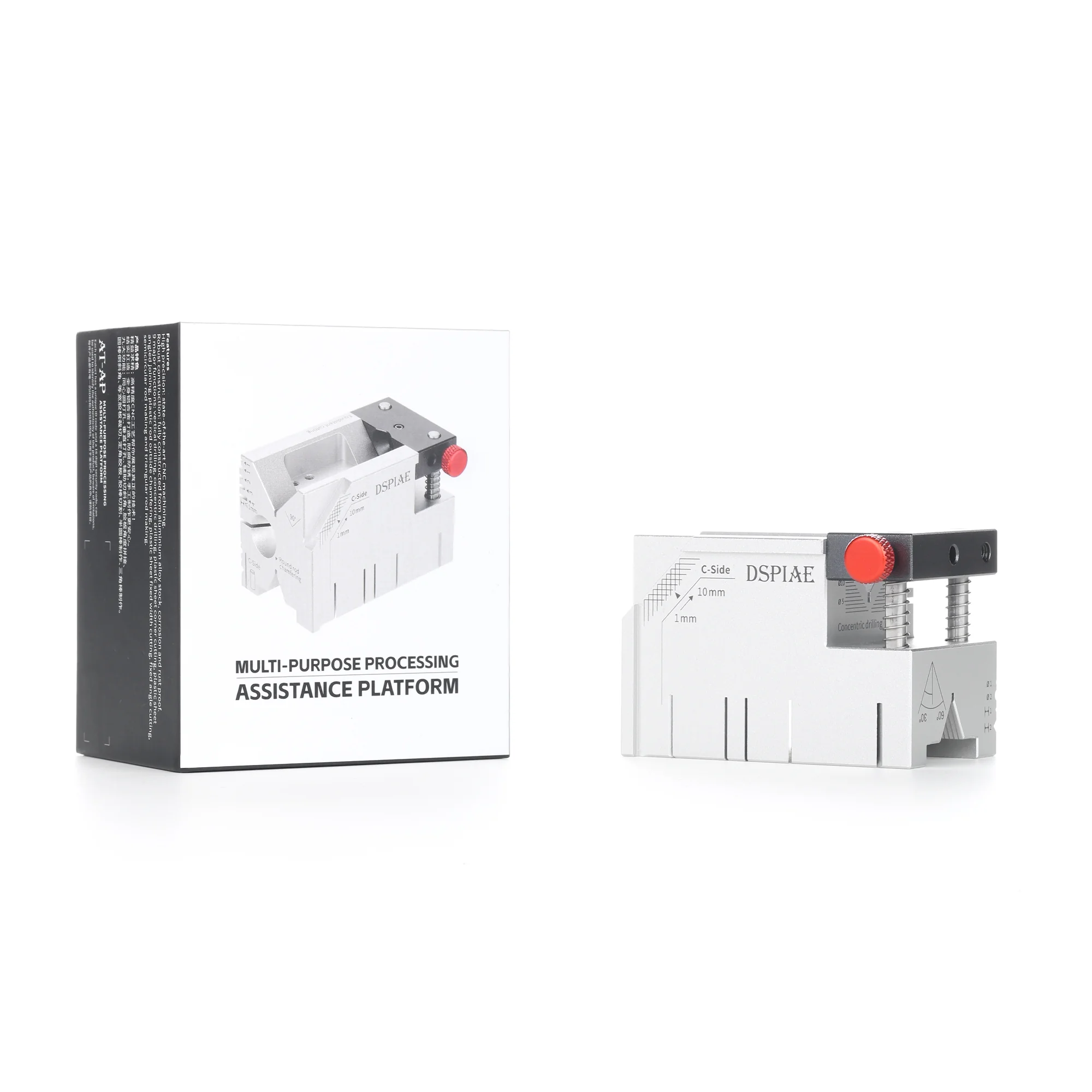

- 1 × AT-AP Processing Assistance Platform
- 1 × Hex wrench
- 1 × Manual
Notes
- For best results, use light pressure and make a few test passes on spare plastic first—especially for cutting and chamfering.
- For the drilling features, check your drill bit shank size (3.175mm supported as listed).
